Overview

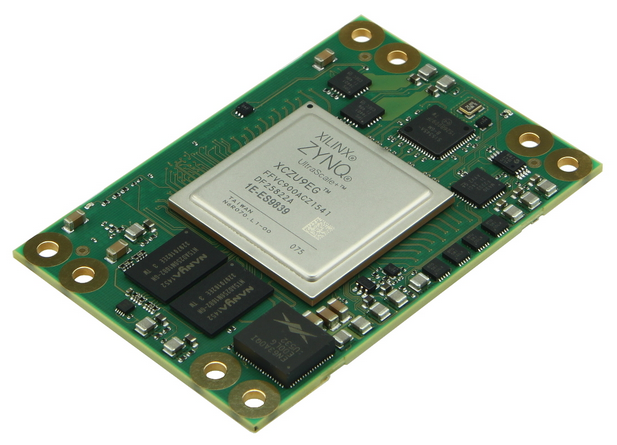

The Trenz Electronic TE0808 is an industrial-grade MPSoC module integrating a Xilinx Zynq UltraScale+, max. 8 GByte DDR4 SDRAM with 64-Bit width, max. 512 MByte Flash memory for configuration and operation, 20 Gigabit transceivers, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.

Key Features

• SoC: ZYNQ UltraScale+ ZU9EG 900 Pin Packages
• Speicher
  - 64-Bit DDR4 - 8 GByte max.
  - SPI Boot Flash dual parallel - 512 MByte max.
• User I/O
  - 65 x MIO, 48 x HD (all), 156 x HP (3 banks)
  - Serial transceiver: GTR 4 (all) + GTH 16 (all)
  - GT clocks, I2C
  - PLL clock inputs and outputs
• Size: 52 x 76 mm
• 3 mm mounting holes for skyline heat spreader
• B2B Connectors: 4 x 160 pin
• Si5345 - 12 output PLL
• All power supplies on board, single 3.3V Power required
  - 14 on-board DC/DC regulators and 13 LDO's
  - LP, FP, PL separately controlled power domains
• Support for all boot modes (except NAND) and scenarios
• Support for any combination of PS connected peripherals

Other assembly options for cost or performance optimization available plus high volume prices on request.
