Product Specifications/Features.

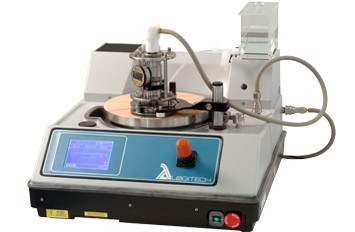

The PM5 system is a key Logitech product found in many R&D laboratories across the world.

The bench-top, research & development scale lapping and polishing system reproduces processing results typically found on production scale equipment.  Highly flexible in use the PM5 allows you to work with many different materials, including Gallium Arsenide.

Designed as a single workstation machine, the PM5 has an integral abrasive autofeed system and optional automatic lapping plate flatness control.

Automatic Plate Flatness (optional)
The automatic plate flatness control system continually monitors the plate shape and automatically corrects any deviations from the pre-set shape. This removes the need to recondition the plate before processing, maintaining the shape indefinitely to within 1 micron of the operator's target. This can be flat, concave or convex to a precise degree. The ease with which the value can be set provides savings in operator time and delivers greater sample output.

The system is made from aluminium and rigid polyurethane to withstand the most rigorous lapping and polishing environments.  All functions are controlled from the joystick and parameters displayed on the LCD at the front of the machine.
